Sports Air Domes
Anti-Glare Air Dome Structure for Badminton Stadium
Parameters
Name |
Anti-Glare Air Dome Structure for Badminton Stadium |
Area |
1500㎡ |
Material |
PVDF-coated Polyester Membrane (Class B1 Fire Retardant) |
Ridge Height |
13m |
Build Time |
4 Days (including Installation and Testing) |
Wind Resistance |
Level 12 |
Temperature |
-40℃~60℃ |
Lifespan |
>25 Years (with Normal Maintenance) |
Details
-

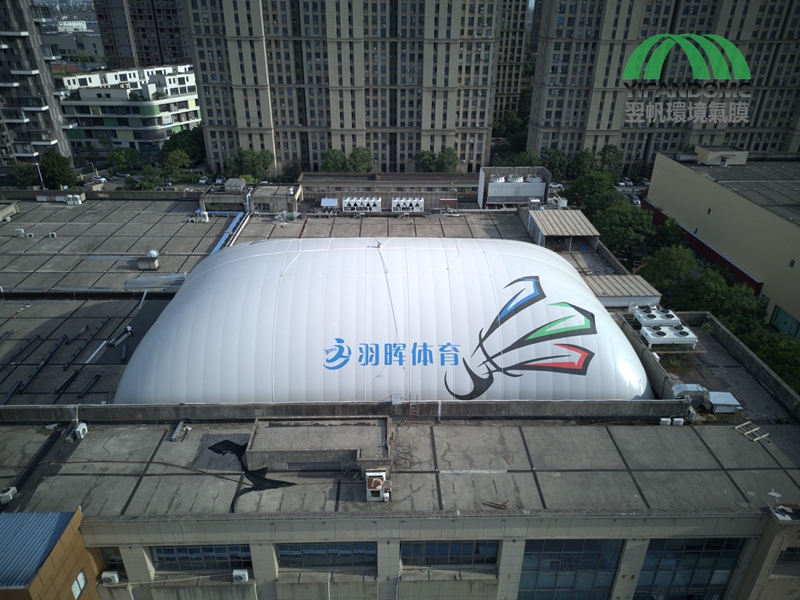

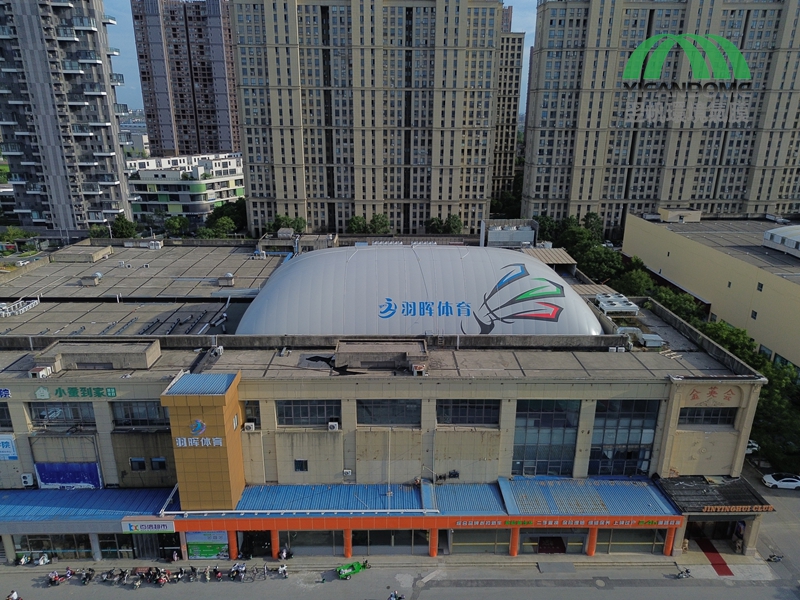

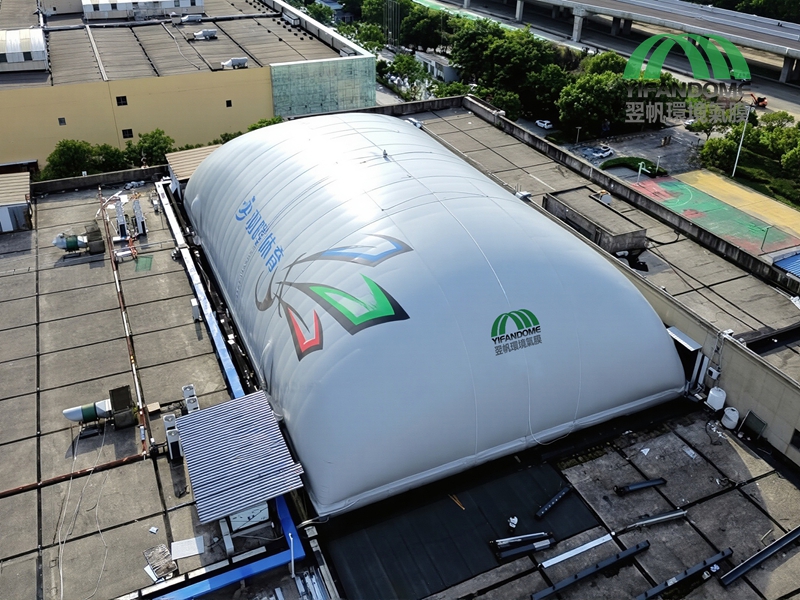

Aerial view of the anti-glare air dome badminton hall
This air supported membrane structure badminton air dome adopts PVDF-coated polyester membrane with Class B1 fire resistance. Anti-UV, anti-mold, moisture-proof and anti-aging, this inflatable membrane dome boasts over 30 years of design lifespan. Structurally capable of resisting Grade 12 wind, Magnitude 8 earthquake and heavy snow, it fits various climates for long-term stable running. -

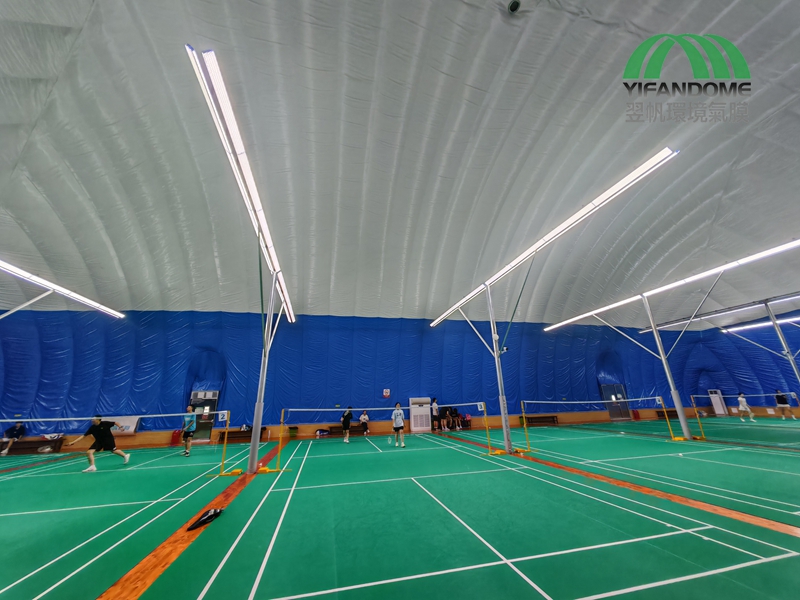

Air dome badminton hall facilities
Nine standard badminton courts with 6mm professional sports flooring are laid inside. Anti-glare honeycomb ceiling lights and wall sound-absorbing panels create outdoor-like comfortable playing conditions. Custom ventilation keeps fresh indoor air without disturbing shuttlecock flight, fully compliant with professional match requirements. -

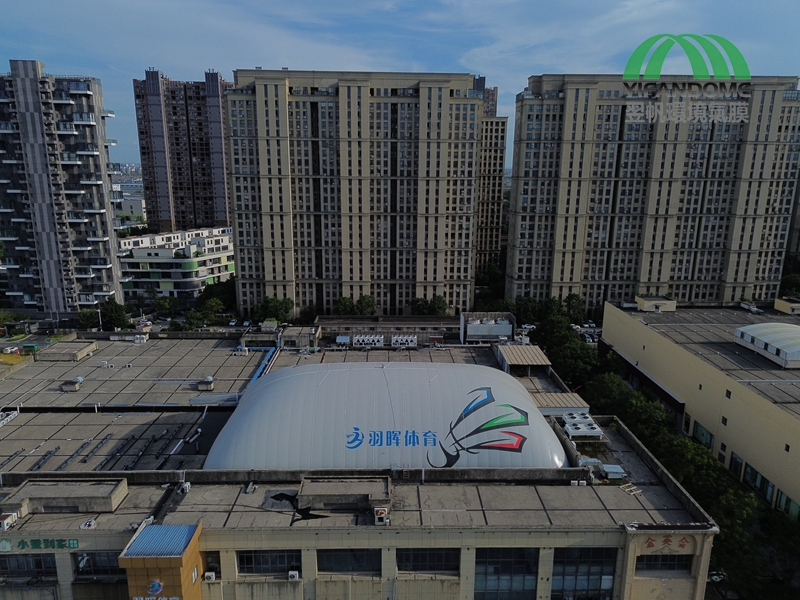

Rooftop Commercial Air Dome Badminton Hall
Fitted with intelligent positive pressure control, constant-temperature fresh air and mobile APP remote monitoring, the air dome automatically adjusts indoor pressure, temperature and humidity. A 3-second early warning function supports full unmanned maintenance for this reliable air supported membrane structure.
Other Advantages
Smart control and energy efficiency, recyclable membrane, and low-noise, dust-free construction. With low costs for both building and maintenance, it perfectly balances eco-friendliness with economic value.
Featuring a self-cleaning surface, the air dome membrane is naturally washed clean by rain, ensuring a lasting, bright look without any maintenance hassle.
Rapid installation, flexibly adapting to various site sizes and spatial requirements.
Application Scenarios
-
• Sports Venue Operators: Low-cost expansion of permanent badminton halls to maximize venue utilization.• Tournament Support: Quick-build temporary venues for events, easily dismantled and reused post-competition.• Universities & Colleges: Ideal for teaching and training, effectively solving court shortages.

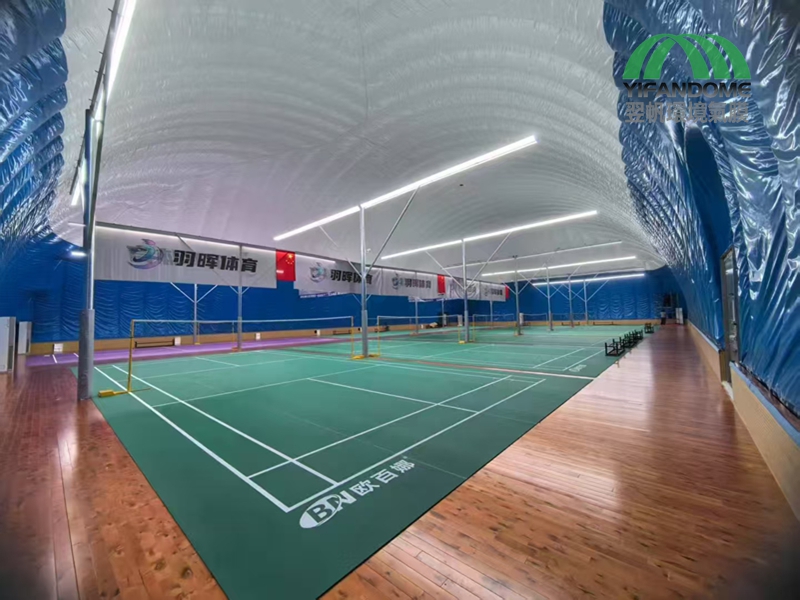

Inside the auto-pressure-regulating air dome
Application Scenarios
-

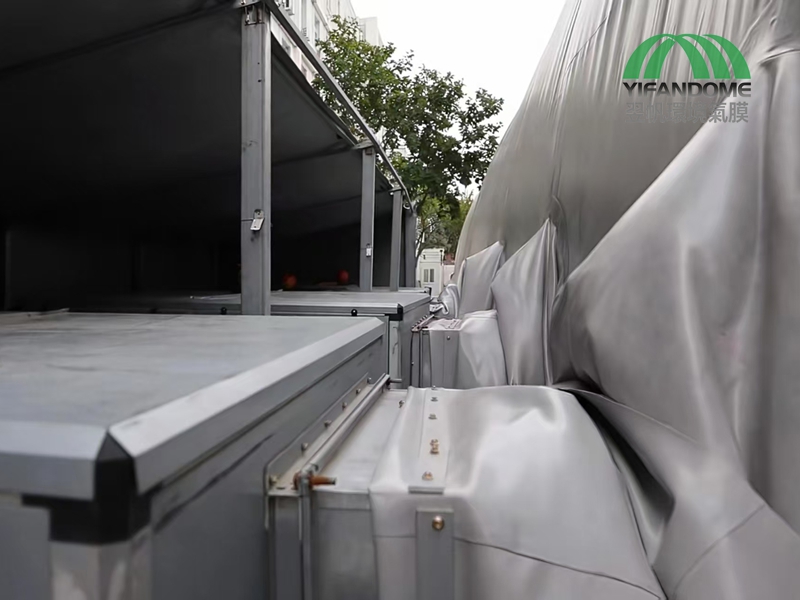

Air dome inflation connection point
Q1: Does the air dome badminton hall require a complex foundation?A1: No. Due to its lightweight structure, it only requires flat, hardened ground. This saves over 60% on foundation costs compared to traditional venues, and it can be specially adapted for complex terrains.Q2: How many people are needed to set up a 1500㎡ air dome?A2: Only 6-8 people. Since the components are prefabricated in the factory, on-site work is limited to inflation and anchoring.Q3: Is the operation and maintenance cost of the air dome high?A3: No. The intelligent control system enables unmanned operation, reducing labor costs, while the constant-temperature fresh air system saves over 40% in energy. With only simple annual checks required for the membrane and equipment, the overall maintenance cost is far lower than that of traditional venues.
