China Suppliers: Yifan Large-Span Air Dome Warehouse Factory - Cost-Effective PVDF Membrane Solution
Parameters
| Name | Yifan Large-Span Air Dome Warehouse - PVDF Membrane |
| Size | Customized |
| Area | Customized |
| Material | PVDF membrane |
| Equipment | Storage air dome, vehicle access, Emergency door, pressure sensor, wind speed sensor, PLC automatic control system |
Details
-

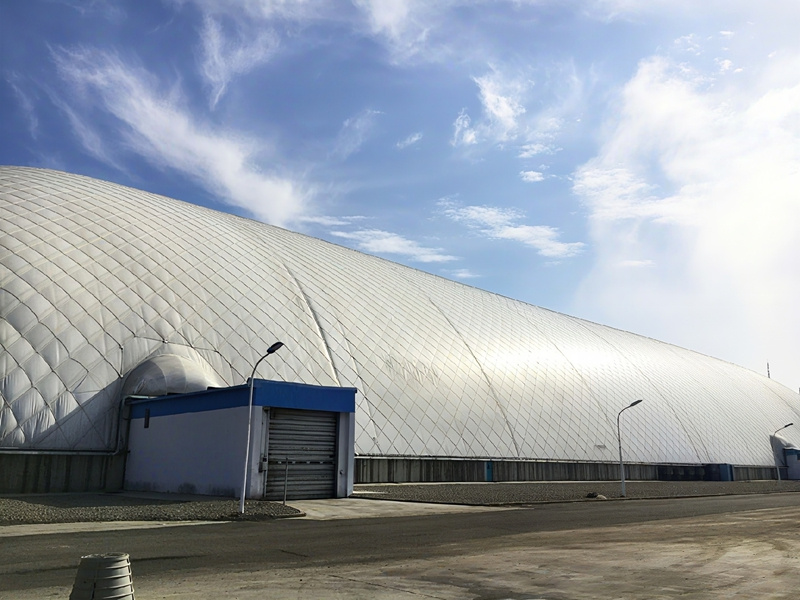

emergency door of giant inflatable dome

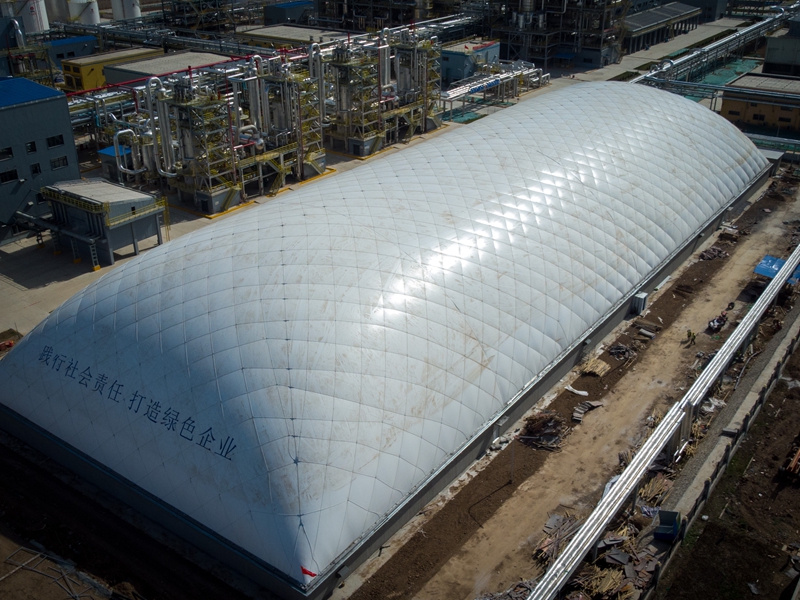

Air dome warehouse is an air supported structure that does not have pressure components such as beams or columns inside. It is continuously supported by dedicated air source equipment to provide internal air pressure support, making it an ideal choice for maximizing storage space. It is very suitable for scenarios such as stacking large volume bulk cargo storage or large-scale mechanical operations. -
estructuras inflables
The warehouse envelope is made of high-performance PVDF membrane material, which features outstanding UV resistance, aging resistance and wind-snow resistance, and can adapt to complex climatic conditions. After special technological treatment, the melting point of the membrane is raised, and it possesses certain flame retardant properties for safer operation. During the operation of the intelligent pressure control system, the internal air pressure is normally about 400 Pa higher than the external pressure. Under such stable low-pressure conditions, the high-strength membrane and reticulated steel cables bear evenly distributed tension, making the entire dome structure resemble an air pillow placed on the ground. -

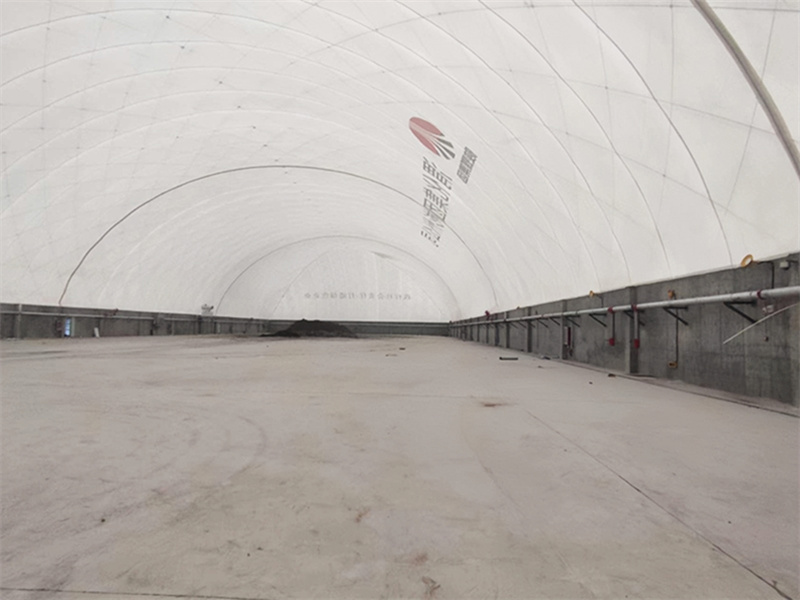

inside the galpones inflables
There is no need to worry too much about the issue of air leakage. We have equipped the membrane chamber with a one-to-one dedicated sealing door system and conducted strict air tightness testing before delivery to ensure that the overall structure meets the design standards and effectively controls the risk of air leakage. -

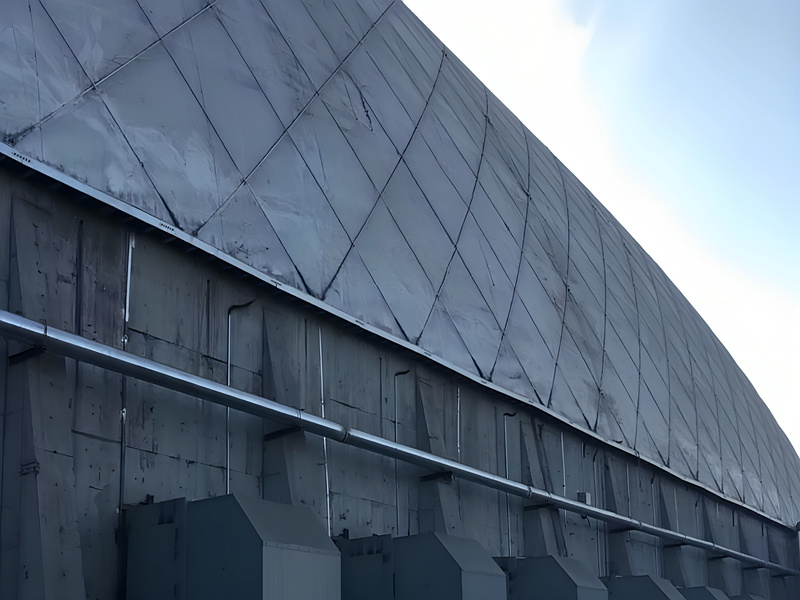

steel cable mesh system of the air dome structure
Compared with traditional reinforced concrete structures, its construction cost per unit area is only around 60%. Meanwhile, thanks to prefabricated construction technology, it enjoys a short construction cycle, with the entire project from commencement to commissioning completed within a maximum of 3 months.
Other Advantages
The construction process is green and environmentally friendly, with almost no loud noise;
Easy disassembly, free movement, flexible response to changing needs.
Frequently Asked Questions
What is an air dome warehouse and how does it work?
An air dome warehouse is an air-supported structure that does not require internal columns or beams. It is continuously supported by specialized air source equipment that maintains internal air pressure, providing an open space ideal for maximizing storage and large-scale operations.
What material is used for the envelope of the air dome?
The warehouse envelope is made of high-performance PVDF membrane material. This material provides outstanding resistance to UV rays, aging, wind, and snow, and features flame retardant properties for enhanced safety.
How does the structure prevent air leakage?
To control the risk of air leakage, the membrane chamber is equipped with a dedicated one-to-one sealing door system. Additionally, all structures undergo strict air tightness testing prior to delivery.
What are the cost and time benefits of this structure?
The construction cost per unit area is only about 60% of traditional reinforced concrete structures. Furthermore, the prefabricated design allows the entire project to be completed and commissioned in a maximum of 3 months.
Is the construction process environmentally friendly?
Yes, the construction process is green and environmentally friendly, producing almost no loud noise. The structure also allows for easy disassembly and relocation to adapt to changing storage needs.
What control equipment is integrated into the system?
The system includes a storage air dome, vehicle access, emergency doors, pressure sensors, wind speed sensors, and a PLC automatic control system to continuously monitor and adjust the internal pressure.
