Yifan Large-Span Air Dome Warehouse - PVDF Membrane

Inflatable warehouse are supported by the internal and external air pressure differential, creating column-free open spaces spanning up to 100 meters. The continuous, unobstructed interior allows efficient operation of vehicles, rail-mounted cranes and loading-unloading platforms, greatly improving overall logistics and operational efficiency.Compared with traditional reinforced concrete buildings, air dome structures only require around 60% of the construction cost per unit area, leading to remarkable reduction in capital investment. Simultaneously adopting modular design and prefabricated construction with a short construction period, and can generally be delivered for use within three months.It helps enterprises achieve rapid commissioning and seize market advantages, serving as a modern warehousing solution integrating cost efficiency and superior performance.

product details

Parameters

Name	Yifan Large-Span Air Dome Warehouse - PVDF Membrane
Size	customized
Area	sustomized
Material	PVDF membrane
Equipment	Storage air dome, vehicle access, Emergency door, pressure sensor, wind speed sensor, PLC automatic control system

Details

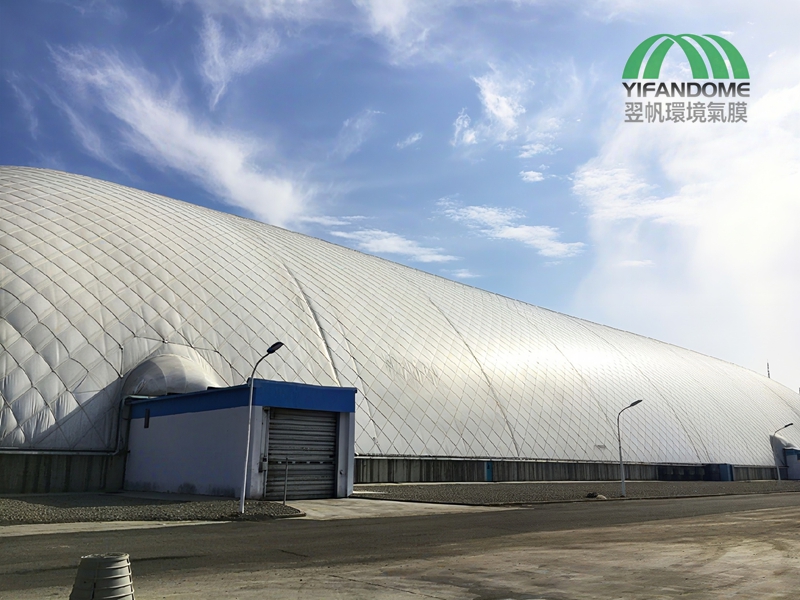

emergency door of giant inflatable dome

Air dome warehouse is an air supported structure that does not have pressure components such as beams or columns inside. It is continuously supported by dedicated air source equipment to provide internal air pressure support, making it an ideal choice for maximizing storage space. It is very suitable for scenarios such as stacking large volume bulk cargo storage or large-scale mechanical operations.

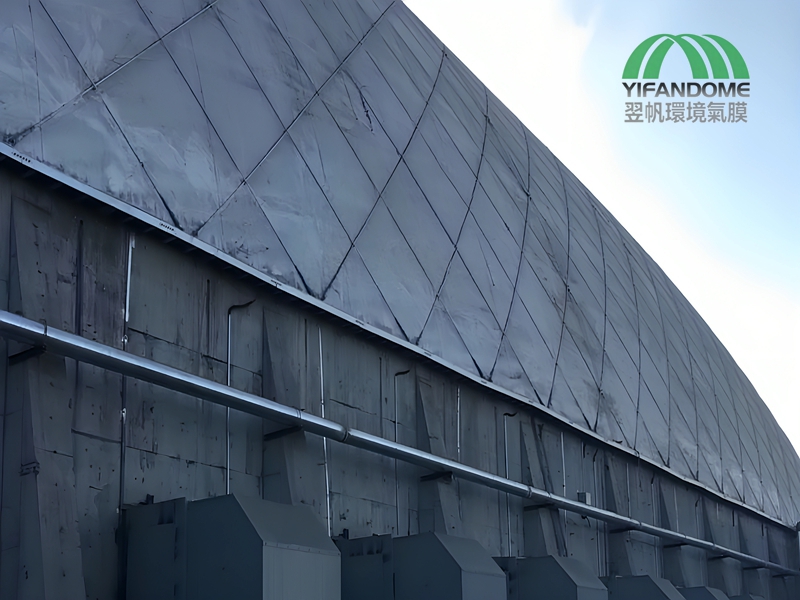

estructuras inflables

The warehouse envelope is made of high-performance PVDF membrane material, which features outstanding UV resistance, aging resistance and wind-snow resistance, and can adapt to complex climatic conditions. After special technological treatment, the melting point of the membrane is raised, and it possesses certain flame retardant properties for safer operation. During the operation of the intelligent pressure control system, the internal air pressure is normally about 400 Pa higher than the external pressure. Under such stable low-pressure conditions, the high-strength membrane and reticulated steel cables bear evenly distributed tension, making the entire dome structure resemble an air pillow placed on the ground.

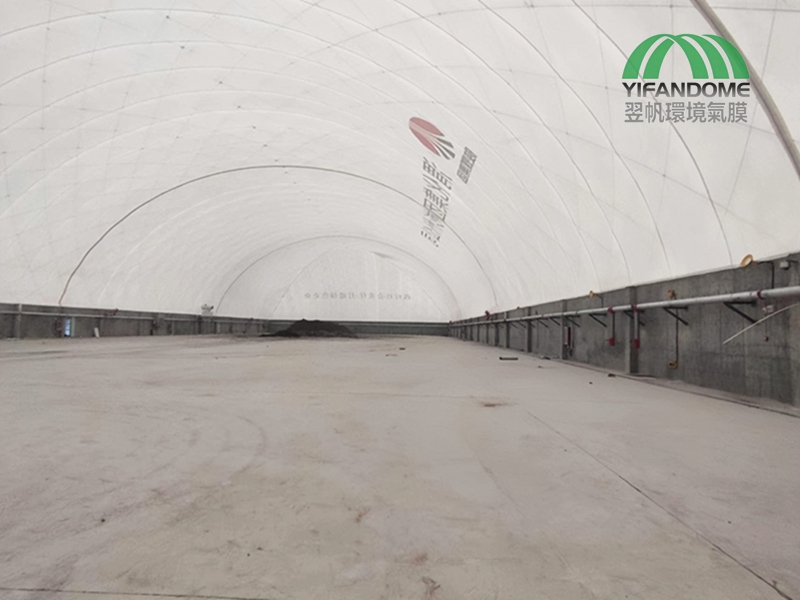

inside the galpones inflables

There is no need to worry too much about the issue of air leakage. We have equipped the membrane chamber with a one-to-one dedicated sealing door system and conducted strict air tightness testing before delivery to ensure that the overall structure meets the design standards and effectively controls the risk of air leakage.

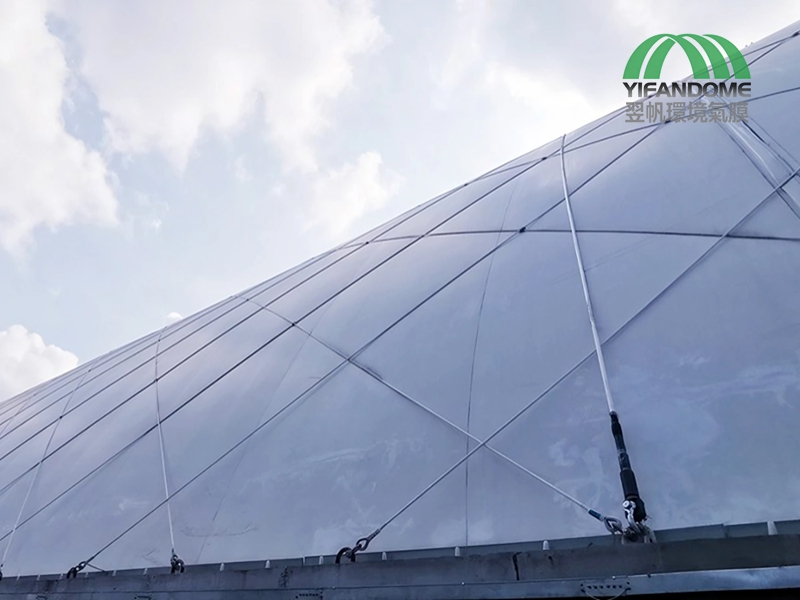

steel cable mesh system of the air dome structure

Compared with traditional reinforced concrete structures, its construction cost per unit area is only around 60%. Meanwhile, thanks to prefabricated construction technology, it enjoys a short construction cycle, with the entire project from commencement to commissioning completed within a maximum of 3 months.

Other Advantages

The construction process is green and environmentally friendly, with almost no loud noise;

Easy disassembly, free movement, flexible response to changing needs.
